Item NO.:
KDS-D-W-LS-003Payment:
L/C, T/TProduct Origin:
ChinaColor:
CustomizedShipping Port:
XIAMENLead Time:
15-35 DAYSProduct Description

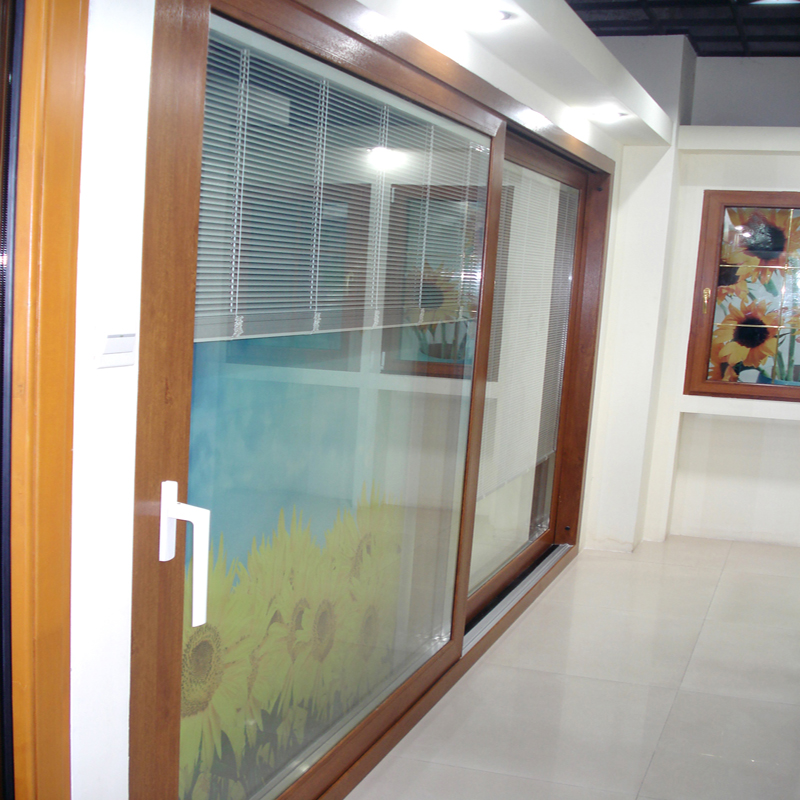

Simple texture solid wood internal sliding doors
Opening style:wood sliding patio doors
Material: Russian larch, American oak. Canadian hemlock etc
Stype: IV68 Finger jonint Solid wood window.
Painting: German water basised paint as Rhenocoll. Remmers etc
Hardware : ROTO, SIEGENIA, Chinese brands and others
Seal : EPDM or American Silicone warm Edge-seal

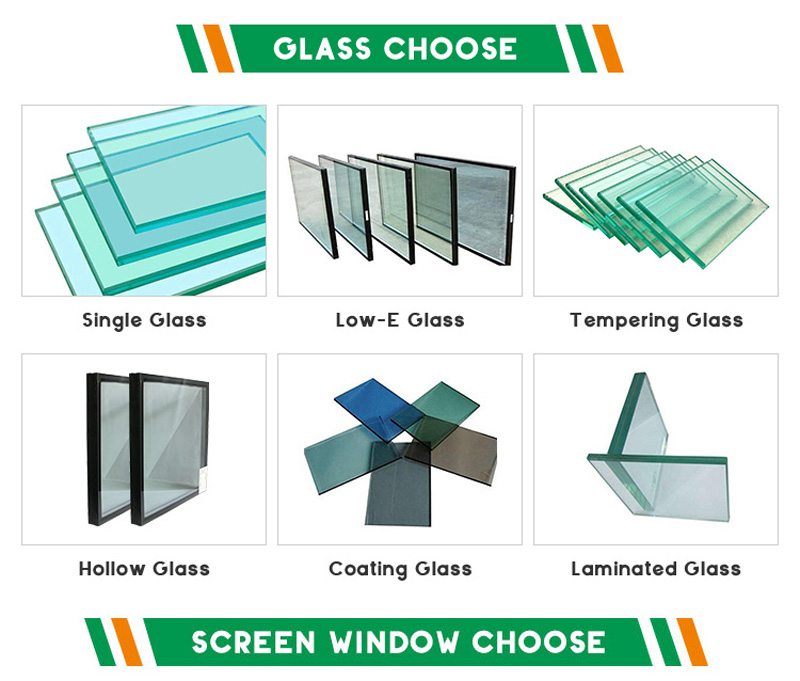

Glass
Glass: Float glass, Tempered glass, Tempered glass, Tinted glass, Laminated safe glass etc. All types of glass as your required
Insulating Glass Spacer; 6A,9A,12A,15A,16A
Standard Insulating Glass: 5mm+9A/12A+5mm, 6mm+9A/12A+6mm argon gas filled
Standard Laminated Glass:5mm+0.38PVB+5mm, 5mm+0.76PVB+5mm
Technical perfprmance:
australian standard as2047 test result
(1) air infiltration test : type air conditioned
(2) water penetration resistance test: 450pa rating n 6, c4
(3) deflection test:serviceability design window pressure:3000pa rating:n6
(4) ultimate strength test: 4500pa rating: n 6
(5) american aama and nfrc test result:u factor:0.35 solar heat gain:0.32 visible transmittance:0.51 air leakage:0.2
Products Show
